The specifications:
Input voltage range：220V/380V±15％
Output frequency range：47-63Hz
Output voltage range：0~Rated input voltage
Output frequency range: 0-400Hz

The characteristics of peripheral interface:
Programmable digital input: Six input
Programmable analog input: FV: 0-10V input, FI:0-20mA or 4-20mA input
Open collector output: single output, Dual output
Relay output: single output, Dual output

Technical performance characteristics：
Control mode: SPWM
Overload capacity: 150％ rated current 60s; 180％ rated current 10s
Starting torque: 1.0Hz/150％
Carrier frequency: 1.0k-20.0kHz

Functional characteristics:
Frequency setting mode: Digital setting, analog setting, serial communication setting, multi segment speed, PID setting and so on

PID control function:
Multi speed control function: 8 stage speed control
PLC function built in VFD: External control of multi speed, internal control of multi speed
Speed tracking and restart function: Realization of the rotation of the motor without impact smooth starting
Automatic voltage regulation function:When the power grid voltage changed, the output voltage can be kept constantly
Provide more than 20 kinds of fault protection function: Over current, over voltage, under voltage, lack of phase, overload protection function.

0.75KW-15KW (Plastic shell parts)

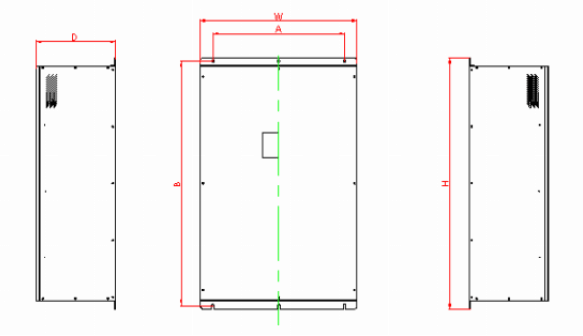

18.5KW-315KW (Plastic shell parts)

The Outline Dimension and Installation Size of 380V inverters

Power（KW）	A(mm)	B(mm)	H(mm)	W(mm)	D(mm)	Mounting Aperture（mm）
	Installation Size		Outline Dimension
0.7～2.2	106.6	175	185	118	154	4
4.0～7.5	148	235	247	160	175	5
11～15	205	305	320	220	198	6
18.5～22	176	454.5	467	290	215	6.5
30～45	230.0	564.5	577.0	375.0	270.0	7.0
55～110	320.0	738.5	755.0	460.0	330.0	9.0
132～200	270	1233	1275	490	391	13
	--	--	1490	490	391	--
220～315	500	1324	1358	750	402	12.5
	--	--	1670	750	402	--
