2000C mini type

2000 series inverter adopts to V/F control, its feature is economical and simple.

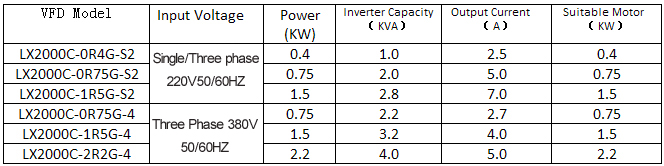

Product Description Product Model Technical Specifications Installation Size Related Data


2000 series inverter adopts to V/F control, its feature is economical and simple.

The specifications:
Input voltage range:220V/380V±15%
Output frequency range:47-63Hz
Output voltage range:0~Rated input voltage
Output frequency range: 0-400Hz

The characteristics of peripheral interface:
Programmable digital input: Six input
Programmable analog input: FV: 0-10V input, FI:0-20mA or 4-20mA input
Open collector output: single output, Dual output
Relay output: single output, Dual output

Technical performance characteristics:
Control mode: SPWM
Overload capacity: 150% rated current 60s; 180% rated current 10s
Starting torque: 1.0Hz/150%
Carrier frequency: 1.0k-20.0kHz

Functional characteristics:
Frequency setting mode: Digital setting, analog setting, serial communication setting, multi segment speed, PID setting and so on

PID control function:
Multi speed control function: 8 stage speed control
PLC function built in VFD: External control of multi speed, internal control of multi speed
Speed tracking and restart function: Realization of the rotation of the motor without impact smooth starting
Automatic voltage regulation function:When the power grid voltage changed, the output voltage can be kept constantly
Provide more than 20 kinds of fault protection function: Over current, over voltage, under voltage, lack of phase, overload protection function

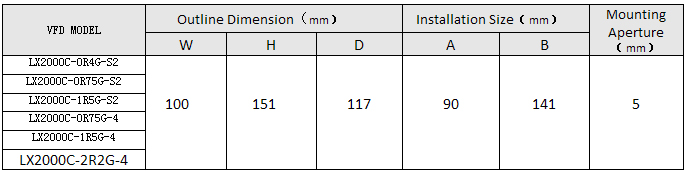

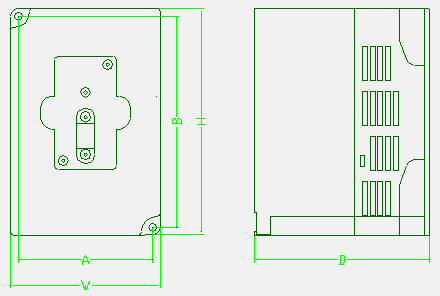

The Outline Dimension and Installation Size
